Did your brush roll stop spinning the second you detached the canister? The Powered Lift-Away feature relies on hidden electrical pins that often fail.
The “Powered Lift-Away” feature is what makes the Shark Rotator famous. It allows you to remove the bulky canister while still sending power to the motorized brush head to reach under furniture.
Did your brush roll stop spinning the second you detached the canister? The Powered Lift-Away feature relies on hidden electrical pins that often fail.
- Symptoms: no power to floor nozzle, brush roll stops in lift-away mode, red light on nozzle
- Tools: rubbing alcohol, Q-tip, small screwdriver
- Difficulty: Medium
But if your brush roll stops spinning the moment you click that Lift-Away button, it’s usually an electrical connection failure, not a broken motor.
The Hidden Culprit: Electrical Pins
When you dock the canister onto the wand, two or more metal pins must make a perfect connection. If these pins are dirty, bent, or pushed in, the electricity can’t reach the floor nozzle.
Shark Robot Battery Replacement: Restore 60-Minute Runtimes

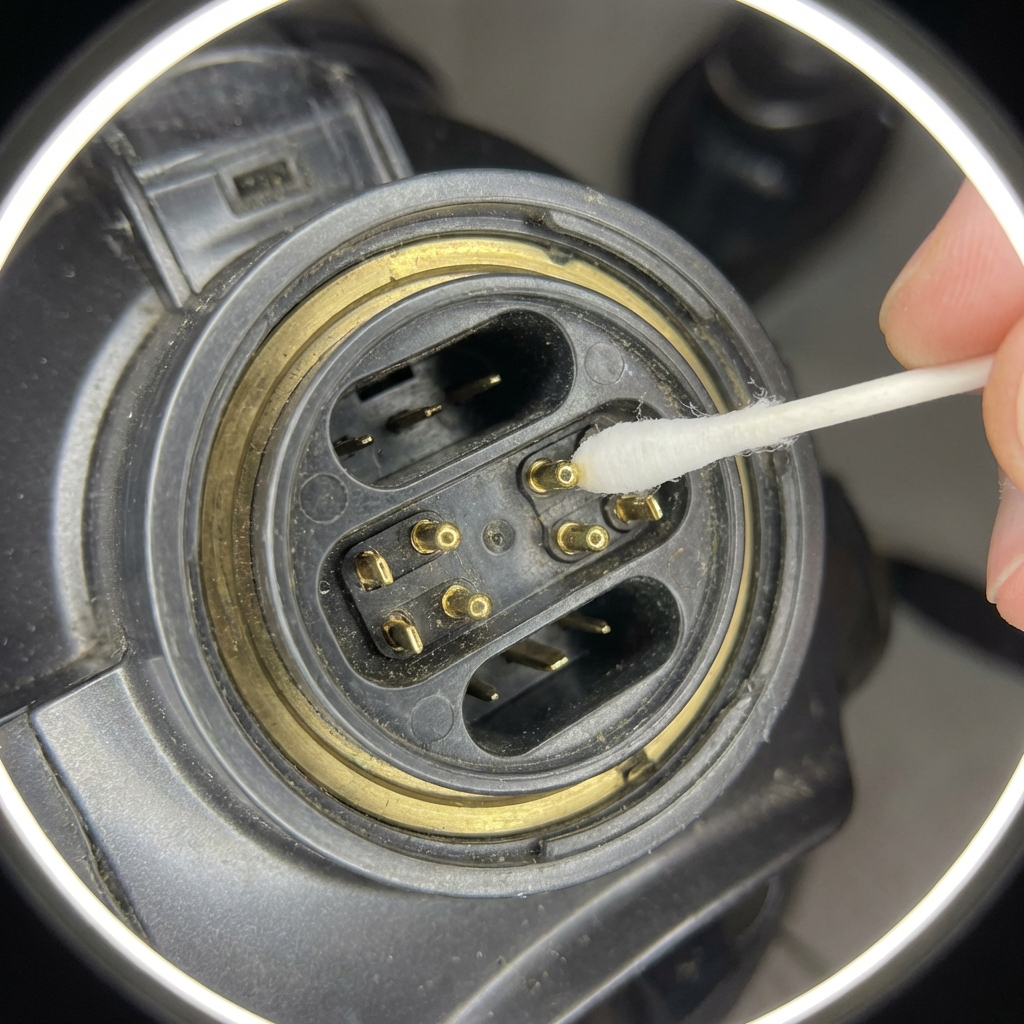

Step 1: Clean the Contacts
- Unplug the vacuum.
- Locate the metal pins on the back of the wand and the matching holes on the canister base.
- Dip a Q-tip in rubbing alcohol and wipe the surfaces clean. Dust and spiderwebs in these holes are the #1 cause of connection failure.
Step 2: The “Spring” Test
The pins are spring-loaded. Use the tip of a pen to gently press each pin.
- The Fix: If a pin is stuck “down” inside the housing, it won’t touch the other side. Gently wiggle it with a pair of tweezers to pull it back out to its full length.
Check the Handle Connection
The electricity for the Rotator has to travel from the wall plug, through the handle, down the hose, and into the wand. A loose hose connection at the handle can break the circuit.
- Disconnect the handle from the hose and snap it back in firmly.
- Ensure you hear a loud click. If the latch is loose, the connection will drop every time you pull the vacuum toward you.
Is the Thermal Switch Triggered?
If you have cleaned the pins and the connection is tight, but there is still no power, the thermal safety switch in the floor nozzle’s motor may have tripped.
- The Fix: Unplug the vacuum and let it sit for 45 minutes. This resets the internal fuse in the floor head. If it works after cooling down, your brush roll was likely overworking due to hair clogs.
